MID 2014/32/EU
Non-Contact, Tactile Certified Length Measurement Systems

Length Measurement acc. European Measurement Instruments Directive

If goods in Europe are sold by length or area, these goods generally have to be measured with calibrated and certified length measurement machines. The European Measuring Instruments Directive MID 2014/23/EU requires, that such length measurement machines undergo a conformity assessment. ELOVIS provides both, contact and non-contact MID length measurement systems, the non-contact µSPEED in combination with the MID-COUNTER, as well as contact measuring wheels or impellers, also in combination with the MID-COUNTER. The ELOVIS MID-COUNTER is equipped with a long-term memory, which safely stores over 4 million measurement results. The MID-COUNTER additionally offers numerous control functions and interfaces to connect with production data acquisition.The ELOVIS consultation on MID topics is appreciated and often used.
Calibrateable length measurement with MID-COUNTER and laser encoder as well as MID-COUNTER and measuring wheel encoder

Product Types – MID 2014/32/EU Calibratable Length Measurement Systems

MID-COUNTER plus Laser Encoder

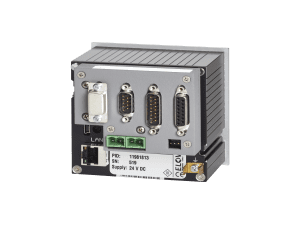

MID 2014/32/EU Calibratable Length Measurement Systems tactile/non-contact: The MID-COUNTER is a counter with control functions for usage in calibrated length measurement machines:

  • Length Measurement Systems according to European Measuring Instruments Directive
  • Calibratable acc. MID 2014/32/EU
  • Good/Bad sorting as well as Part Length Counter
  • Gear factor and calibration function
  • Cutting control with preselection length, pre-contact, stop-contact
  • Length Display with 9 digits
  • Storage of > 4 million readings
  • networkable counter
  • Communication e.g. via MODBUS (serial + network) + optionally other Fieldbuses
  • Welmec Certificate of the PTB
  • PTB Assembly Units Certificate
  • Optionally: Printer connection, large display connection

Version with µSPEED-PRO

MID 2014/32/EU Calibratable Length Measurement Systems non-contact, in conntection with bidirectional laser encoder µSPEED-PRO:

  • PRO Sensor with measurement capability from 0
  • PRO Sensor with automatic direction detection
  • For all processes
  • For all material surfaces
  • Calibratable (MID 2014/32/EU)
  • Length Measurement Systems according to European Measuring Instruments Directive
 Version with µSPEED-SMART

MID-COUNTER in connection with the unidirectional Laser Encoder µSPEED-SMART:

  • SMART sensor for medium to high speed applications
  • SMART sensor with directional input for a direction signal of the machine control
  • For processes with few starts and stops per measurement
  • Calibratable (MID 2014/32/EU)
  • Length Measurement Systems according to European Measuring Instruments Directive

MID-COUNTER plus WHEEL-ENCODER

MID 2014/32/EU Calibratable Length Measurement Systems tactile/non-contact: Identical to MID-COUNTER. Here, however, in the version for operation with a measuring wheel encoder:

  • tactile impeller encoder (measuring wheel with encoder/rotary encoder)
  • gear factor and calibration function
  • typ. Measurement accuracy of ± 0,3 %
  • Length Measurement Systems according to European Measuring Instruments Directive
Version with measuring wheel encoder MID-WE

Measuring wheel with MID rotational-encoder:

  • Measuring wheel with 500mm circumference (other circumferences possible)
  • Measuring wheel surface rubberized or metallically corrugated (other wheel surfaces are possible)
  • For bidirectional measurement
  • For slow winding and cutting processes
  • For processes with moderate accelerations
  • For material surfaces with grip
  • calibratable (MID 2014/32/EU)
  • Length Measurement Systems according to European Measuring Instruments Directive

Technical Data – MID 2014/32/EU Calibratable Length Measurement Systems tactile/non-contact with MID-COUNTER and laser sensor (µSPEED) or MID-COUNTER and Wheel-Encoder (WE)

MID-COUNTER
with µSPEED-PRO
MID-COUNTER
with µSPEED-SMART
MID-COUNTER
with MID-WE
System Configuration MID Counter and bidirectional Laser Encoder MID Counter and unidirectional Laser Encoder MID Counter and Wheel driven Encoder
Conformity Assessment Procedure MID 2014/32/EU
pre-examination and assembly unit certificate existent
MID 2014/32/EU
pre-examination and assembly unit certificate existent
MID 2014/32/EU
pre-examination and assembly unit certificate existent
Direction Recognition Yes, non-contact Via external direction signal Ja, with contact
Measurement from V=0 Yes, non-contact No Yes, with contact
Accuracy (typ.)
(2σ;L>10m/3σ;L>20m)
± 0,05 %
Accuracy Class: I, II, II
± 0,05 %
Accuracy Class: I, II, III
ca. ± 0,3 %
Accuracy Class I
Repeatability ± 0,02 % of measurement value
V-Measurement Range 0 m/min → ± 1.200 m/min (± 20 m/s)
0 ft/min → ± 3600 ft/min (± 60 ft/s)
0,5 m/min → 6.000 m/min (100 m/s)
(1,5 ft/min → ± 18.000 ft/min (± 300 ft/s)
0 m/min → 300 m/min (5 m/s)
0 m/min → ± 900 ft/min (± 15 ft/s)
Measurement Distance (Tolerances) 115±5 (±20) mm 120±5 (±20) mm
240±10 (±40) mm
tactile, contacting measurement
Interfaces 2 x RS-232
USB 2.0 Device (PC Connection
10/100 MBit Ethernet Interface
I/Os Quadrature Output
1 to 100.000 (depending on maximum speed) pls/m
Input: 4 x digital
Output: 4 x digital
I/O Type RS‐422 Gauge
Laser Interlock (single, 24V)
Available Data Speed, Length, Laser Interlock, Valid Measurement
Data Storage: Storage of > 4 million measurement values
Network/Database Connection Available protocols: SOAP, XML, JSON, UPD
transmitted with every reset: serial number, measurement ID, meter, status
optional transmission: date, time, pre-settings, order number
Protection Class Sensor Sensor Head: IP67 Encoder:  acc. to type (smooth running types: IP65, IP66)
Protection Class Counter MID-COUNTER: Front: IP51; Back: IP20
Dimensions
(LxWxH)
Sensor Head: 154x94x39 mm
MID-COUNTER: 96x96x160 mm; LCD Display: 128×64 Pxl.
Measuring Wheel: depending on diameter
Power Supply 24VDC (18 V to 24 V)
Weight Sensor Head: 0,9 kg Measuring Wheel: depending on diameter
Laser Data 25mW, 780 nm (Laser Class 3B)
Ambient Temperature/Humidity 5 to 45°C ‐ not condensing (Beyond normal temperature range: external cooling/heating system required)

Accessories for MID 2014/32/EU Calibratable Length Measurement Systems tactile / non-contact

Sensor Cable

Shielded Cables

µSPEED-C10, C25, C50

Sensor cables for connecting the µSPEED sensors with the MID-COUNTER with lengths between 10 and 50 m (longer lengths on demand)

Display and Control Units

Serial Large Display

µSPEED-DIS

μSPEED-DIS is used to read μSPEED measurement values from a distance. The large display is equipped with 6 digits as standard, but can optionally be set up as 4 or 8-digit 7-segment display. Character height: 57 mm

Label Printer

Printer for connecting to the MID-COUNTER

µSPEED-PRT

In some applications there is a need to provide the product measured in length directly with a label which contains the essential measurement data. This is done by the printer μSPEED-PRT.

Optical Adjustment Monitoring

Optical Adjustment Aid

µSPEED-OAJ-3-N

μSPEED-OAJ-3-N allows a fast and safe adjustment of μSPEED systems without the aid of meter sticks, spirit level or protractor. The adjustment aid OAJ3 is, among other things, for portable measurement applications, for measurements on rotating cylinders or in tight spaces and in applications with constantly varying material spacing.

Protection Casing

Casing for air cooling

µSPEED-HSEe

The casing μSPEED-HSEe made of stainless steel is used to protect the sensor head from contamination and from unsuitable ambient temperatures. The HSEe must be supplied with suitable purging air.
Casing for air cooling and water cooling

µSPEED-HSEw

The casing μSPEED-HSEw is used to protect the sensor head from contamination and from unsuitable ambient temperatures. The HSEw must be supplied with suitable purging air. It is designed for higher ambient temperatures due to the additional connection for water cooling. The HSEw contains two heat exchanger plates.
Heat Exchanger Plates

µSPEED-HE

Heat exchanger plates with 2 cooling water flange connections can be mounted on one or both sides of the sensor head. The water-rinsed heat exchanger plates allow the use of the sensor in a warm measuring environment.
Quick Cange Protective Glass

µSPEED-QCW

The μSPEED-QCW Quick Change Protective Glass is designed for use in harsh environments with heavily polluted ambient air. The QCW allows the replacement of the protective glass in seconds and allows the actual cleaning of the glass can be operated detached from the sensor.

Sensor Mounting Plate

Mounting Plate with Swivel/Slot Hole Element

µSPEED-MP

μSPEED-MP is set up via rotary element, which allows an angular adjustment of the sensor in the material movement direction by +/- 80 °. Slotted holes on the rotary element allow a distance adjustment of the sensor head.

Height Adjustment Unit

Adjustment unit for precise distance adjustment of the sensor head

µSPEED-HA

The height adjustment unit allows the sensor adjustment to be carried out with the diameter and thickness variations of the material being measured at the correct measurement distance.

Cable Guidance with Stand

Cable Guidance and Sensor Tripod with Laser Protection Casing

µSPEED-CGS

The cable guidance with tripod for the μSPEED sensor (μSPEED-CGS) always ensures the correct distance between the cable and the sensor as well as the correct routing of the cables. When the laser protection casing is opened, the laser switches off automatically.

Laser Protection Equipment

Laser Protection Tube

µSPEED-TUBE

The sensor head TUBE for the μSPEED sensor reduces the risk of direct exposure of the laser beam. The TUBE can be combined with the laser shutter LSH.
Laser Shutter

µSPEED-LSH

The laser shutter μSPEED-LSH is used for the mechanical blocking of the laser beam. The shutter is manually activated by means of a sliding mechanism and is mounted on the front of the μSPEED system with four screws.
Optics

µSPEED-AO

The angle optics AO is used when the existing mounting space is very limited. The 90° angle optics makes it possible to manage with minimal space.
Laser Protection and Safety Monitoring

µSPEED-LSSC

The laser protection safety monitoring links various monitoring sensors to avoid any danger from the μSPEED laser. Laser class 1 may be achieved in conjunction with other protective measures.

Messprinzip Laser-DopplerMID 2014/32/EU Non-Contact Calibratable Length Measurement Systems

Laser-Doppler based Length Measurement

With the help of two laser beams, a stripe pattern is generated on the medium to be measured. Through movement of the scattering surface, the backscattered light into the detector is modulated in its intensity, while the frequency of the brightness modulation is directly proportional to the speed of the medium and therefore to the doppler frequency. The use of special marks or benchmarks on the measurement object is not required. The scattered light will then be transformed into an electric signal through a photodetector and supplied to a digital signal processor (DSP) via analog / digital converter. With this high capacity processor, the current speed and path length will be calculated out of the digitized signal. The output of the µSPEED Laser Encoder by standard is a length-proportionate quadrature signal. The quadrature signal is then processed by the MID-COUNTER into length values.



MID 2014/32/EU Tactile Calibratable Length Measurement

Measuring Wheel based Length Measurement

A measuring wheel runs along the medium to be measured. The measuring wheel is driven by the measurement object itself. The measuring wheel is mechanically connected to the machine and is held by a spring arm via the spring preload on the material to be measured. The encoder flanged to the measuring wheel sends a quadrature signal to the MID-COUNTER, which processes the signal and determines length values.

Videos regarding MID 2014/32/EU Calibratable Length Measurement Systems tactile / non-contact

Product Video – µSPEED

Laser Encoder Length Measurement Systems and Speed Measurement Systems

Product Ranges and Application Overview

Length Measurement in Textile Production – µSPEED

Laser-Encoder Length Measurement Systems and Speed Measurement Systems

Measurement at the output of production with portable μSPEED system

Wire Length Measurement – µSPEED

Laser Encoder Length Measurement Systems and Speed Measurement Systems

Length measurement in bare-wire production with μSPEED laser system

Steel Rope Length Measurement System – µSPEED

Laser Encoder Length Measurement Systems and Speed Measurement Systems

Testing the measurement accuracy of a system counter for ropes with portable μSPEED laser sensor

Textile Fabric Inspection Length Measurement – µSPEED

Laser Encoder Length Measurement Systems and Speed Measurement Systems

Length measurement machine for textiles is calibrated without contact with μSPEED

Nonwoven Fabric Length Measurement – µSPEED

Laser Encoder Length Measurement Systems and Speed Measurement Systems

Length measurement in nonwoven fabric production plant without contact with μSPEED laser doppler system

Downloads regarding MID 2014/32/EU Calibratable Length Measurement Systems tactile/non-contact

MID – Product Overview MID – Manual MID – Part Certificate MID – National Measurement Instruments Directive MID – European Measurement Instruments Directive 2014/32/EU

APPLICATIONS

MID certified Length Measurement

If goods are sold in Europe by length or area, they generally must be measured with "MID-certified" calibrated length...

Length Speed

Roll Length/Coil Length

Is your billing based on correct length values? Are all materials measured with same accuracy? Or do you risk len...

Cut-to-length Control

Do you avoid length additions or do you deliver excess length just to be safe? Do you have the strict requirement to ...

APPLICATION EXAMPLES

Certified fabric inspection for textiles

Textiles, fabrics, artificial leather, laminated materials are sold by length and must therefore be measured on calib...

Calibrated Length Measurement of Cables

Cables are usually sold on rolls according to length and must therefore be measured with calibrated length measuremen...

Calibrated Measurement of Paper and Fleece

When selling paper and nonwovens in the EU, the length or area measurement must be done with calibrated length measur...
