MAAG Rolling / Measuring Inspection Machine

Inspection Machines with Length Measurement acc. MID 2014/32/EU

MAAG inspection machines for the final presentation with contactless calibrated length measurement acc. MID 2014/32 / EU for inspection and measurement of fabrics, artificial leather and laminated materials. With edge-exact winding and MAAG data acquisition system. Gebr. MAAG AG offers rolling machines, measuring machines, inspection machines and tables and production machines.

Typical application data:

  • Winding speed: 0 to 100 m/min
  • Measuring accuracy: non-contact length measurement with μSPEED sensor: typically 0.1%
  • Rolling machine, measuring machine, inspection machine
  • Precise winding of web material

Material examples:

  • Textile fabrics, artificial leather, nonwoven, foils
  • Laminated goods and foam-laminated materials
  • Composites

MAAG inspection machines, which are equipped with calibrated length measurement solutions:

  • Rollers, winders, rewinders with length measurement
  • Production sub-machines with length measurement
  • Inspection machines, machines for final presentation
MAAG End-packing machine with calibrated length measurement

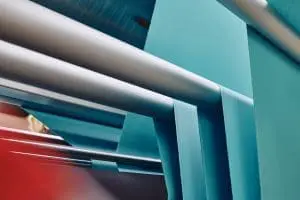

MAAG fabric inspection machine with non-contact length measurement

Matching Products and Services

MID 2014/32/EU
Certified Length Measurement Systems

  • Verifiably Calibrated, Certified Length Measurement Systems according EU-Measuring-Instruments-Directive MID 2014/32/EU
  • Non-contact MID Measurement Systems consisting of MID-COUNTER and Laser-Encoder
  • Tactile MID Length Measurement System consisting of MID-COUNTER and impeller or measuring wheel
  • Measurement Systems with preliminary examination through the PTB (The National Metrology Institute of Germany)

ELOVIS Service

ELOVIS offers the following services in the field of verifiable, calibrated length measurement:

  • Advice on the conformity assessment of length measuring machines
  • Measurement services in the run-up to a conformity assessment
  • Help with length complaints of your customers
  • OEM sensor developments in the MID 2014/32 / EU area
