Calibrateable Cable Length Measurement up to 1,600 m/min

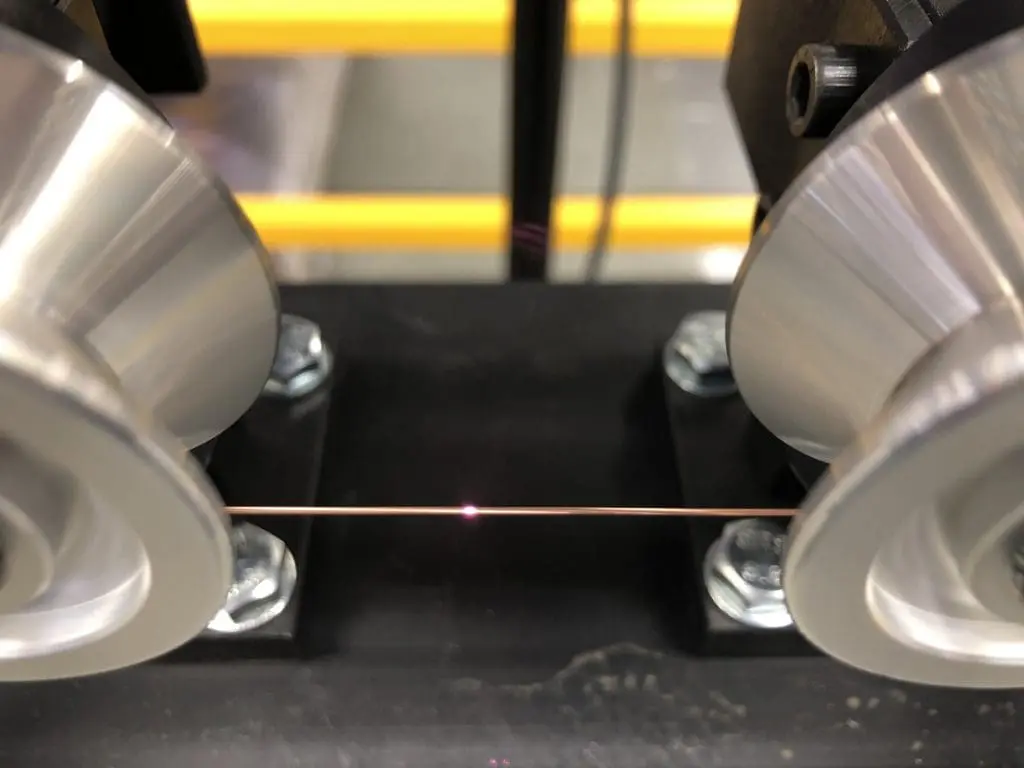

The combination of μSPEED-SMART laser encoder and MID-COUNTER together with the CGS cable guide with measurement tripod has recently been successfully tested at cable speeds of up to 1,600 m/min. The high-speed extrusion line delivered cable diameters of 0.5mm to 6mm. The cable routing would theoretically be suitable for diameters up to more than 10 mm. Thus, the plant operator is now prepared for the calibrated high-speed extrusion with length measurement acc. MID 2014/32/EU, on all follow-up lines. The measurement of non-insulated strands at maximum line speed was also successfully tested. The ELOVIS measurement technology will also be used in the presentation area in the future.
