ROBUST – Foil cutting machine with part length measurement

foil format cutting machines and winding technology

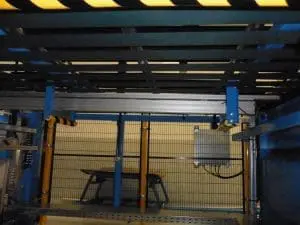

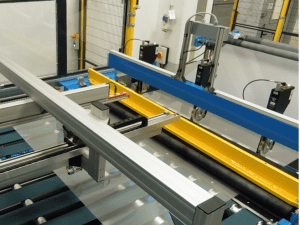

ROBUST is specialized in slitting machines and winding technology. The product range includes roll slitting and winding machines, lengthwise slitting and cross cutting machines as well as machines for laminating, coating and gluing. In ROBUST cutting machines, ELOVIS length measuring systems ensure that the length accuracy is maintained and that the measurement results are 100% documented. In the application described here, the SLM discrete part length measuring system measures transparent, optical foil format sheets for displays and monitors with high precision over length.

Typical application data:

  • Measurement of foil formats after cutting, before sorting / packaging
  • Production speeds: typically up to 1 pcs/sec or 20m/min
  • Cutting system without SLM system: only random sample inspection possible, accuracy: +/- 0.5mm/m
  • 100% measurement with non-contact length measurement SLM, typical accuracy: 0.2mm/m
  • Amortization: 2 months, integration of the measuring system into Weerth Anlagentechnik

Material examples:

  • Foil formats, foil plates
  • Foil thickness: from 100 µm to 500 µm
  • Foil size: up to 1200 mm x 2050 mm
  • Foil-Material: PE, PUR, PVC, …

ROBUST machines, which are extended by non-contact length measurement:

  • Longitudinal and cross / format cutting machines
  • Roll cutting and winding machines
  • Cutting machines for the photo voltaic industry
  • Cutting machines for the timber and furniture industry
  • Winding and rewinding systems
  • Core cutting machines
  • Coating and laminating systems

Matching Products and Services

Length-Section Light Scanner
Discrete Part Length Measurement System

  • Non-contact length measurement of discrete parts in the production process or in a cycle
  • Highly accurate measurement of discrete parts, good/bad sorting and documentation
  • LED-based length-section light scanner measurement technology, maintenance-free, optical, permanently calibrated
  • Optical micrometer for the length measurement of profiles, tubes, plates

ELOVIS Services

ELOVIS offers the following services for the measurement of foil and metal sheet formats:

  • Advice on discrete part length measurement
  • measurement services
  • Help with length complaints of your customers
  • OEM sensor developments in the area of piece length measurement
