Calibration of Machine Length Counters

correct roll lengths and coil lengths through regular inspection

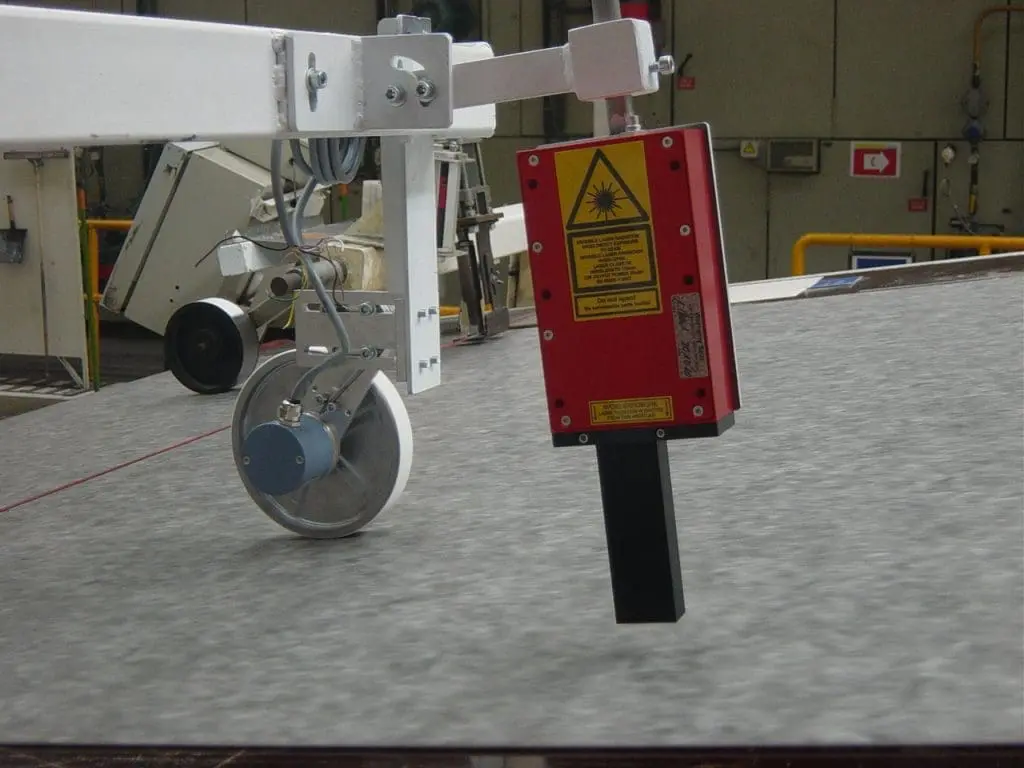

Encoders and machine length counters for detecting web lengths or roll lengths should be checked for proper function and accuracy from time to time. This is done quickly and safely with the non-contact μSPEED length measurement systems. The highest possible measurement accuracy, 100% documentation as well as measurement and calibration protocols by a calibration specialist are accompanied by the subsequent assurance that the roll lengths and coil lengths are measured correctly.

Typical application data:

  • Path Velocity: typically up to 4,000 m / min
  • Measurement accuracy with tactile measuring equipment or via drive: typically 0.5-5%
  • Measurement accuracy with non-contact length measurement μSPEED: typically 0.03%
  • Amortization: at the first complaint that has been avoided

Measurement and material examples:

  • Inspection of length meters of winding machines for paper, cardboard, tissue, foil, floor coverings, sheets, coils, textiles, wire, cables, profiles, …
  • Inspection of counters for transparent foil, glossy foil, food foil, packaging foil, furniture foil, …
  • Troubleshooting to find equipment with slippage, elongation, shrinkage, …

Machines equipped with non-contact length measurement:

  • roll cutting machines, roll cutter, cross cutter, lengthwise cutter
  • Winding machines, rewinder, re-roller, doctor roller
  • extruders, film casting machines, calenders
  • laminating machines, fabric inspection machines

Matching Products and Services

Length & Speed Measurement Systems

  • Non-contact length and speed measurement, optically by laser
  • Length and speed free of slippage, maintenance-free, permanently calibrated and accurately measured
  • The Laser-Encoder replaces tactile measurement via impeller, wheel, measurement roller, or machine drive
  • Measurement of agitated surfaces via laser-doppler surface velocimeter

ELOVIS Services

ELOVIS offers the following services for machine encoder calibration:

  • Advice on length and speed measurement
  • Measurement & calibration services
  • Help with length complaints of your customers
  • OEM sensor developments in the field of length and speed measurement
