Calibration of the system counter

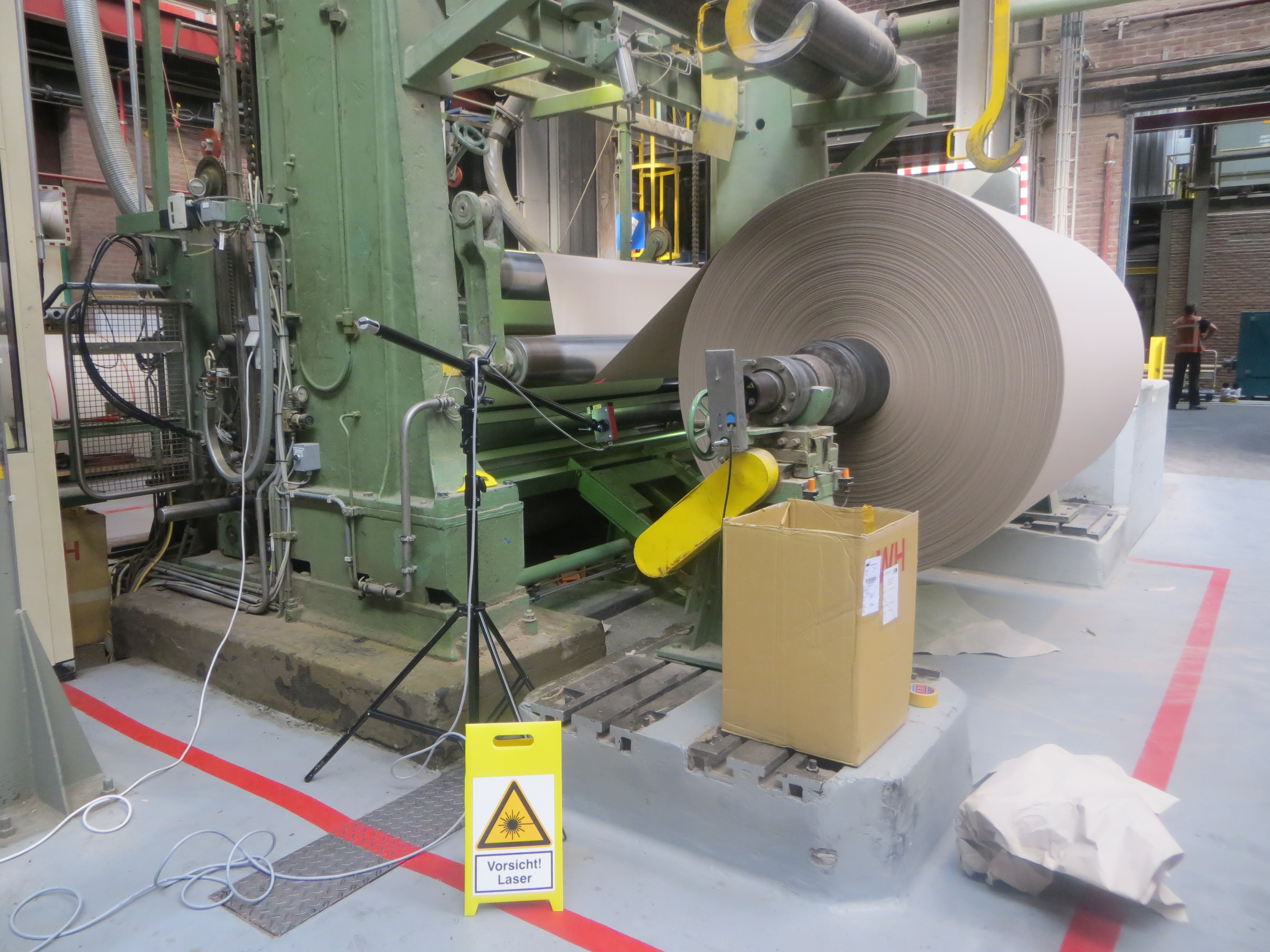

Inspection of a machine counter for a roll cutting machine
  • System calibration with portable μSPEED-smart system with calibration certificate for paper, foil, nonwoven, textile, …
  • Used on roll cutting machine, winder, cross cutter, lengthwise cutter
  • Measurement accuracy: better ± 0.05% measurement length
  • Measurement speed up to 4,800 m/min
  • PC evaluation with calibration protocol

Repeat length measurement

  • Double-sided repeat length measurement with double system μSPEED-RL on printed foils, packaging
  • Measurement accuracy: ± 0.2 mm per repeat
  • Measurement speed up to 800 m/min
  • PC evaluation with statistics function
  • Optional: Printing machine control

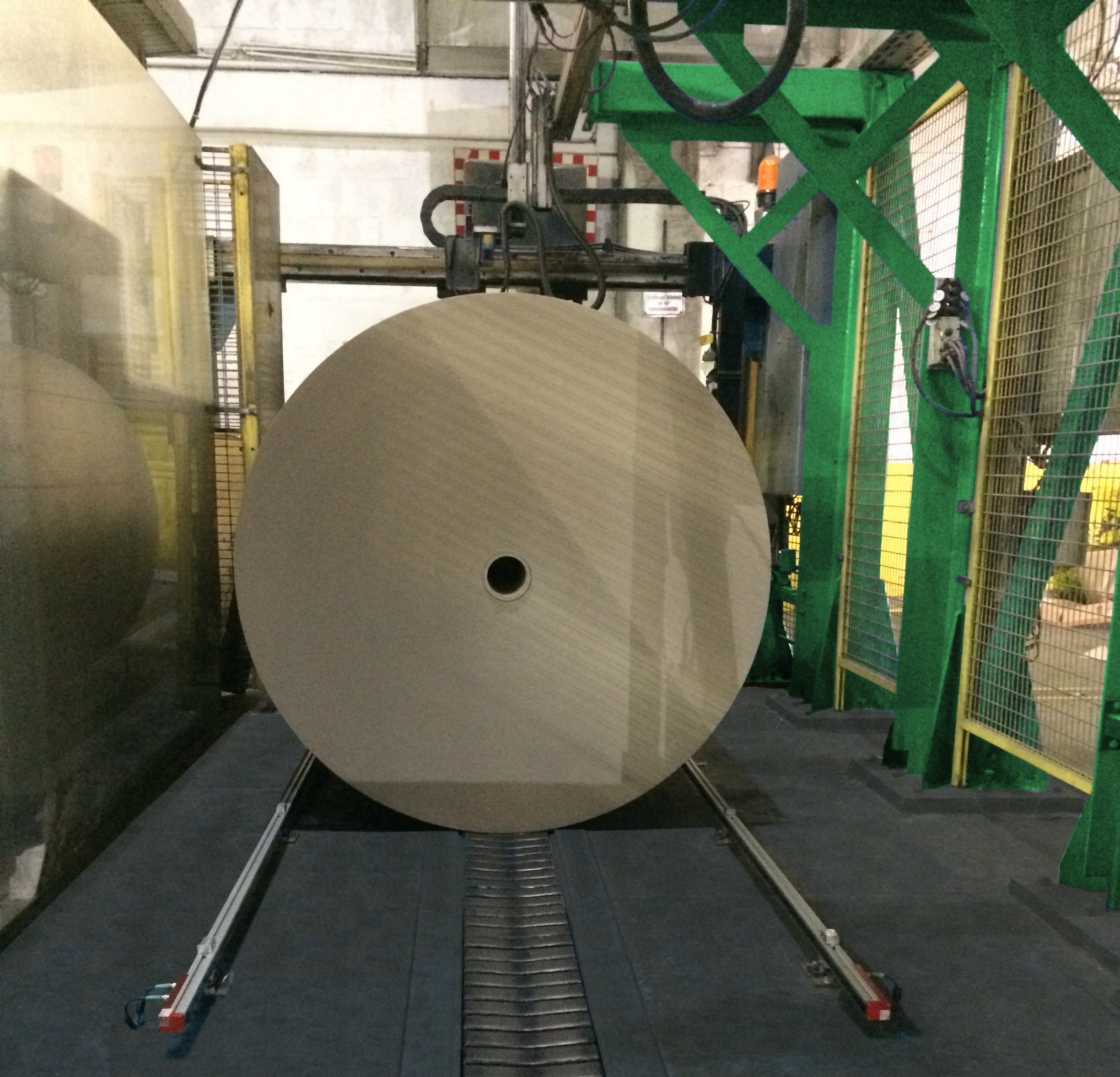

Measurement of the roll width

  • Measuring the roll width of paper rolls in one pass on a floor chain conveyor
  • Application according to winder/roll cutter
  • Measurement accuracy: ± 1 mm without standstill during lateral transport of the roll
  • System independent of conveyor speed
  • Measurements of roll widths up to 5 m

Plate length measurement and width measurement

  • Length measurement and width measurement on chipboard, fiberboard, real wood and furniture panels
  • Use for product identification or for longitudinal or diagonal saw
  • Measurement accuracy: 0.1 mm per meter
  • Measurement speed of up to 4 m/s
  • Material protrusions and plate rotations are optionally detected and automatically corrected
  • Optional PLC control with touch screen
  • Optional monitoring of angularity, thickness measurement and surface inspection
