Final measurement of extruded cable ducts and cable guides

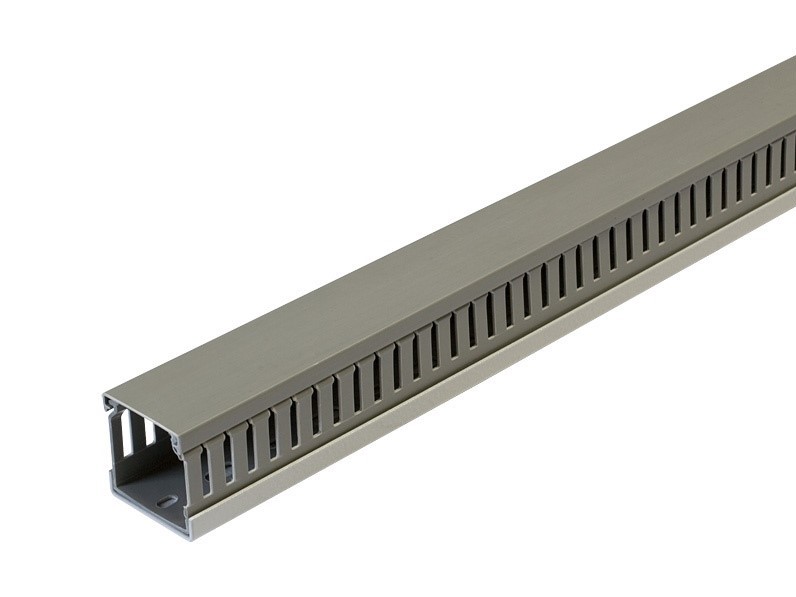

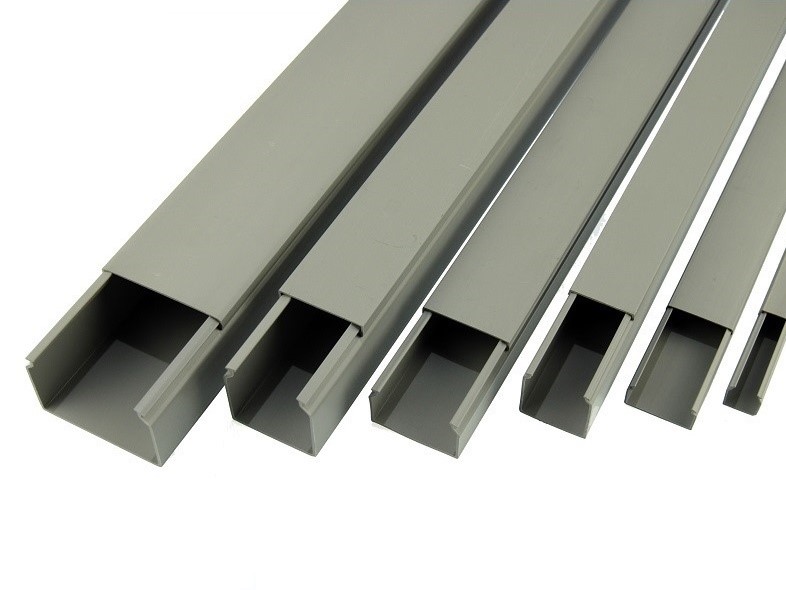

Cable ducts, wiring channels and cable guides should have the correct length after extrusion and cutting. Cable ducts that are too short are rejects, parts that are too long must be reworked. It is the task of the ELOVIS length section light scanner to record the lengths exactly after cutting and, if necessary, to output a control signal to the cutting unit. If confined installation conditions or cross slides make the use of a continuous light grid impossible, a two-part length-section light grid of the type SLM-2 is used.
Typical Application Data:
- Measurement of cable ducts after cutting, before packaging
- Production speeds: typically up to 50 m / min
- Problem with contact measuring devices: only sample inspection possible, accuracy: +/- 1mm / m
- Measurement accuracy with non-contact length measurement SLM: typically 0.1mm / m
- Amortization: 2 months, integration of the measuring system into the existing conveyor system
Material examples:
- Extruded profiles of hard and soft plastic as well as co-extrusion and tri-extrusion
- Materials: PVC, ABS, PP, PC, PMMA, ASA and TPU
- Products: Cable ducts, wiring channels, cable ducts, cable ducts, terminal strips
Machines equipped with non-contact piece length measurement:
- guillotine, cross cutter, cross divider, cutting machine
- saw line, flying saw, continuous saw, punch
- Packaging lines, sorting lines, QS stations
Matching Products and Services
Length-Section Light Scanner
Discrete Part Length Measurement System
- Non-contact length measurement of discrete parts in the production process or in a cycle
- Highly accurate measurement of discrete parts, good/bad sorting and documentation
- LED-based length-section light scanner measurement technology, maintenance-free, optical, permanently calibrated
- Optical micrometer for the length measurement of profiles, tubes, plates
ELOVIS Services
ELOVIS offers the following services for the measurement of cable duct lengths:
- Advice on piece length measurement
- measurement services
- Help with length complaints of your customers
- OEM sensor developments in the area of piece length measurement
