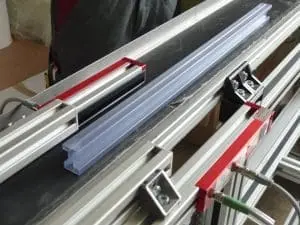

Non-contact final measurement of translucent profiles and tubes
Even the final length measurement of translucent plastic profiles is easily and accurately possible with the non-contact ELOVIS SLM length-section light scanner. In most cases it is possible to measure translucent and opaque profiles with one and the same system setting.
Typical application data:
- Measurement of transparent profiles and pipes after cutting, before packaging
- Production speeds: typically up to 50 m / min
- Problem with contacting measuring instruments: only random checks possible, accuracy: +/- 1mm / m
- Measurement accuracy with non-contact length measurement SLM: typically 0.1mm / m
- Amortization: 2 months, integration of the measuring system into the existing conveyor system
Material examples:
- Extruded profiles of hard and soft plastic as well as co-extrusion and tri-extrusion
- Materials: PVC, ABS, PP, PC, PMMA, ASA and TPU
- Products: Sealing profiles, pipes, hoses, corrugated pipes, windscreen wiper profiles, spoilers, …
Machines equipped with non-contact piece length measurement:
- guillotine, cross cutter, cross divider, cutting machine
- saw line, flying saw, continuous saw, punch
- Packaging lines, sorting lines, QS stations
Matching Products and Services
Length-Section Light Scanner
Discrete Part Length Measurement System
- Non-contact length measurement of discrete parts in the production process or in a cycle
- Highly accurate measurement of discrete parts, good/bad sorting and documentation
- LED-based length-section light scanner measurement technology, maintenance-free, optical, permanently calibrated
- Optical micrometer for the length measurement of profiles, tubes, plates
ELOVIS Services
ELOVIS offers the following services for the measurement of translucent profile pieces:
- Advice on piece length measurement
- measurement services
- Help with length complaints of your customers
- OEM sensor developments in the area of piece length measurement
