Fabric inspection acc. MID 2014/32 for hard-to-measure materials

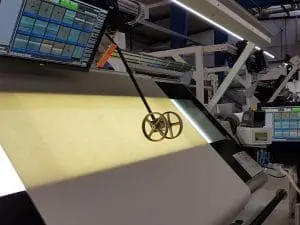

Textile fabrics, artificial leather and laminated materials are sold by length and must be measured on calibrated fabric measuring machines. This always applies if the sale takes place within the EU. If the goods are difficult to measure due to their elasticity, softness, thickness and structure, the use of non-contact calibrated length measuring systems is recommended. For non-stretchy and non-yielding goods, calibrated contact length measuring systems can also be used if necessary. ELOVIS offers non-contact laser encoder-based and measuring wheel-based MID systems, including printer connection and interface for production data acquisition, to fabric foaming machine operators and manufacturers. ELOVIS can also provide advice and support for MID conformity assessment! Translated with DeepL.com (free version)
Typical application data:
- Winding speed: 0 to 150 m / min
- Measurement accuracy: typically 0.3 – 0.5%
- Measurement accuracy contactless μSPEED: typically 0.1%
- Amortization: 3 months, direct encoder replacement, strain-free material guidance is necessary
Material examples:
- Textile fabrics, and artificial leather, nonwoven, foils, foam-laminated materials
- Laminated goods and composites
Systems equipped with calibrated length measurement:
- Winding machines, rewinder, cross cutter
- Fabric inspection machines, laminating machines
