Length Measurement of Nonwovens independent of thickness

Non-Contact Measurement of soft, elastic surfaces

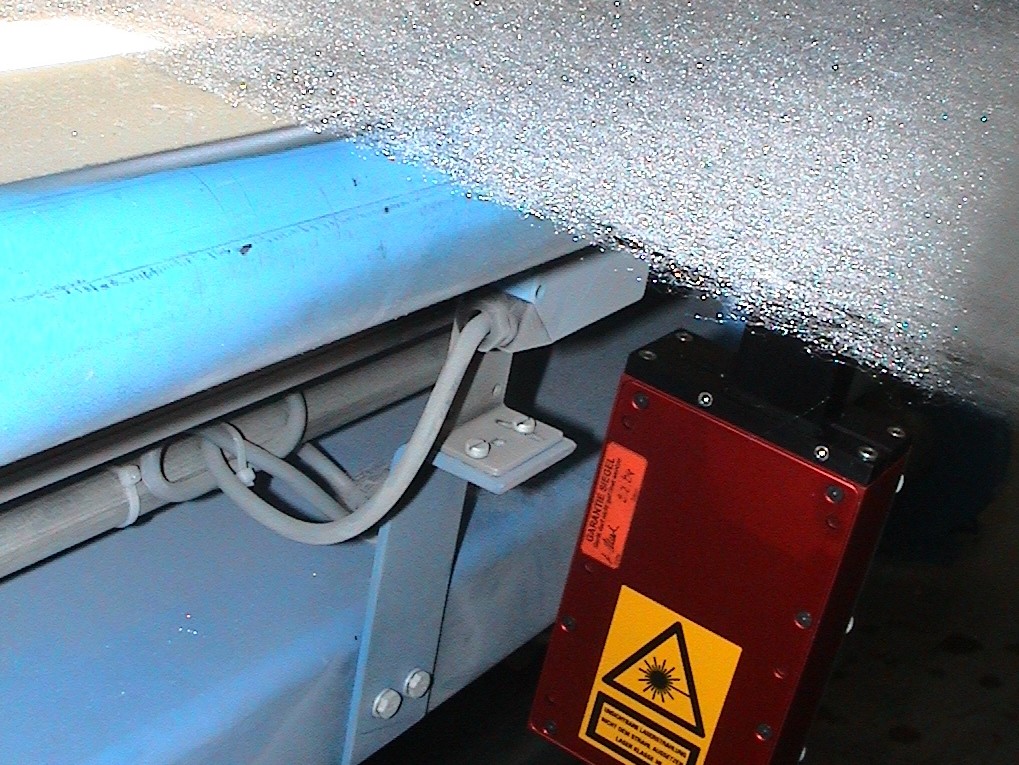

Length measurement of nonwoven, felt and material with high thickness variance and different grammages with consistently high measurement accuracy. Precise length measurement on soft and elastic surfaces. Non-contact measurement as a basis for length and square size or area accounting. The non-contact laser encoder system μSPEED serves as a measuring device which is maintenance-free, almost independent of material and can be used with consistently high accuracy at high and low speeds.

Typical application data:

  • Path Velocity: typically up to 600 m / min
  • Measurement accuracy with tactile measuring equipment or via drive: typically 2 – 5%
  • Measurement accuracy with non-contact length measurement μSPEED: typical: 0.05%
  • Amortization: 3 months, direct encoder replacement, no other modifications needed

Material examples:

  • Nonwoven, felt, technical nonwoven, insulation materials, glass fiber fleece, spunbond spunlace
  • Nonwoven fabric, filter fleece, roof underlayment, heat / impact sound insulation, geo-fleece, …


Machines equipped with non-contact length measurement:

  • Roll Cutting Machines, Roll Cutter, cross cutter, lengthwise cutter
  • Winding machines, rewinder, re-roller, doctor roller
  • calenders, laminating machines, fabric inspection machine
Nonwoven Measurement

Matching Products and Services

Length & Speed Measurement Systems

  • Non-contact length and speed measurement, optically by laser
  • Length and speed free of slippage, maintenance-free, permanently calibrated and accurately measured
  • The Laser-Encoder replaces tactile measurement via impeller, wheel, measurement roller, or machine drive
  • Measurement of agitated surfaces via laser-doppler surface velocimeter

ELOVIS Services

ELOVIS offers the following services for the measurement of nonwovens:

  • Advice on length and speed measurement
  • Measurement & calibration services
  • Help with length complaints of your customers
  • OEM sensor developments in the field of length and speed measurement
