quickly commissioned, exactly – 100% documented

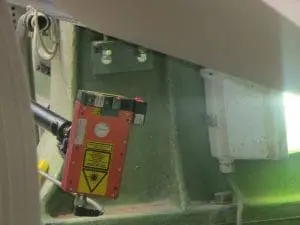

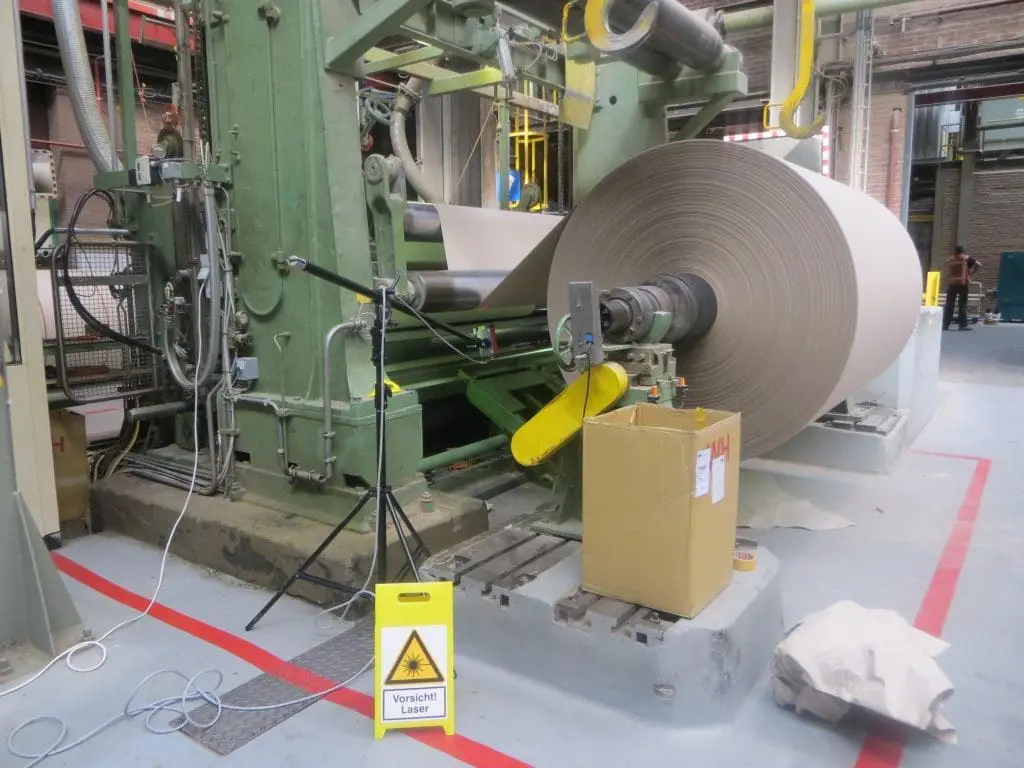

Comparing the preparatory effort to a hand-held measurement system, only much safer, ELOVIS length measurement systems can be used with a tripod. Thanks to the 0.9 kg sensor head weight and optical adjustment aid, the sensors can be build up fast, safe and positioned in correct way. The measuring distance of 120 mm or 240 mm, mounting via tripod as well as the alignment by means of optical adjustment device helps to always keep a certain minimum distance to rotating parts. The operator does not risk getting into high-speed equipment. The length measuring system is used on measuring tripod e.g. for fast calibration of several system counters.
Typical Application Data:
- Path Velocity: typically up to 4,000 m / min
- Measurement accuracy with tactile measuring equipment or via drive: typically 1 – 5%
- Measurement accuracy with non-contact length measurement μSPEED: typically 0.03%
- Amortization: 3 months, direct encoder replacement, no other modifications needed
Measurement and Material Examples:
- Inspection of length counters of winding machines for paper, cardboard, tissue, foil, floor coverings, sheets, coils, textiles, wire, cables, profiles, …
- Troubleshooting to find machines with slippage, elongation, shrinkage, …
Machines equipped with non-contact length measurement:
- roll cutting machines, roll cutter, cross cutter, lengthwise cutter
- Winding machines, rewinder, re-roller, doctor roller
- Extruders, calenders, laminating machines, fabric inspection machines
Matching Products and Services
Laser-Encoder
Length & Speed Measurement Systems
- Non-contact length and speed measurement, optically by laser
- Length and speed free of slippage, maintenance-free, permanently calibrated and accurately measured
- The Laser-Encoder replaces tactile measurement via impeller, wheel, measurement roller, or machine drive
- Measurement of agitated surfaces via laser-doppler surface velocimeter
ELOVIS Services
ELOVIS offers the following services for portable tripod-based measurement:
- Advice on length and speed measurement
- Measurement & calibration services
- Help with length complaints of your customers
- OEM sensor developments in handheld instrumentation
