Contador de longitudes con tecnología de sensores láser sin contacto y certificado de unidad según la MID 2014/32/EU
El contador de longitud MID-COUNTER cumple con los requisitos de la Directiva Europea de Instrumentos de Medición MID 2014/32/UE y, junto con los sensores de longitud sin contacto µSPEED-SMART y µSPEED-PRO, tiene un certificado de unidad del Physikalisch-Technische Bundesanstalt (PTB). El MEDIADOR está equipado con una memoria a largo plazo que almacena con seguridad más de 4 millones de resultados de mediciones. El MEDI-CUENTA también ofrece funciones de control como la preselección de la longitud, el pre-contacto, el contacto de corte/parada así como el contador de longitudes bueno/malo, el factor de corrección, la función de calibración (sólo para la rueda de medición) y la conexión de una impresora de etiquetas. El MID-COUNTER es compatible con la red y permite la conexión a la propia adquisición de datos de producción del cliente (PDA). El contador de longitudes con tecnología de sensor láser sin contacto y certificado de unidad es adecuado para obtener certificados de examen de tipo para máquinas de medición.
Variantes de productos para contadores de longitud con tecnología de sensores láser sin contacto y certificado de unidad según la MID 2014/32/UE
| MID-COUNTER
El MID-COUNTER es un contador de longitudes para la conexión de la tecnología de sensores láser sin contacto con un certificado de unidad según MID 2014/32/UE y, por lo tanto, un sistema de medición de longitudes calibrable.
|
|
| Variante con µSPEED-PRO
MID-COUNTER en combinación con el codificador láser bidireccional µSPEED-PRO:
|
 |
| Variante con µSPEED-SMART
MID-COUNTER en combinación con el codificador láser unidireccional µSPEED-SMART:
|
 |
Technical Data for length counters with non-contact laser sensors and parts certificate acc. to MID 2014/32/EU
| MID-COUNTER with µSPEED-PRO |
MID-COUNTER with µSPEED-SMART |
|
| Conformity Assessment Method | MID 2014/32/EU Preliminary test and parts certificate available |
|
| Direction Recognition | Yes, non-contact | via external direction signal |
| Measurement from V=0 | Yes, non-contact | No |
| Accuracy (typ.) (2σ;L>10m/3σ;L>20m) |
± 0,05 % Accuracy Class: I, II, II |
|
| Repeatability | ± 0,02 % of measurement value | |
| Type of Sensor/Device | Smart Sensor with counter | |
| Speed Measurement Range | 0 m/min → ± 1200 m/min (± 20 m/s) 0 m/min → ± 3600 ft/min (± 60 ft/s) |
0.5 m/min → 6000 m/min (100 m/s) 1.5 ft/min → ± 18000 ft/min (± 300 ft/s) |
| Measurement Distance (Tolerances) | 115±5 (±20) mm | 120±5 (±20) mm 240±10 (±40) mm |
| Interfaces | 2 x RS-2321 USB 2.0 Device (PC Connection) 10/100 MBit Ethernet Interface |
|
| I/Os | Quadratur Output 1 to 100.000 (depending on maximum speed) pls/m Input: 4 x digital Output: 4 x digital |
|
| I/O Type | RS‐422 Pegel Laser Interlock (single, 24V) |
|
| Available Data | Speed, Length, Laser Interlock, Valid Measurement Data Storage: Storage of > 4 million measurement values |
|
| Network/Databank Connection | Available Protocols: SOAP, XML, JSON, UPD Transmitted with every reset: Serial Number, Measurement ID, Meter, Status Optional transmission: Date, Time, Pre-selection, Order Number |
|
| Protection Class | Sensor Head: IP67 MID-COUNTER: Front: IP51; Back: IP20 |
|
| Dimensions (LxWxH) |
Sensor Head: 154x94x39 mm MID-COUNTER: 96x96x160 mm; LCD Display: 128×64 Pxl. |
|
| Power Supply | Sensor: 24 VDC (18 V to 30 V) MID-COUNTER: 24 VDC (18 V to 24 V) |
|
| Weight | Sensor Head: 0,9 kg | |
| Laser Data | 25mW, 780 nm (Laser Class 3B) | |
| Ambient Temperature/Humidity: | 5 bis 45°C ‐ not condensing Beyond temperature range external cooling/heating required |
|
Accessories for MID 2014/32/EU Calibratable Length Measurement Systems tactile / non-contact
Sensor Cable |
| Shielded Cables
µSPEED-C10, C25, C50 |
Sensor cables for connecting the µSPEED sensors with the MID-COUNTER with lengths between 10 and 50 m (longer lengths on demand) |  |
Display and Control Units |
| Serial Large Display
µSPEED-DIS |
μSPEED-DIS is used to read μSPEED measurement values from a distance. The large display is equipped with 6 digits as standard, but can optionally be set up as 4 or 8-digit 7-segment display. Character height: 57 mm |  |
Label Printer |
| Printer for connecting to the MID-COUNTER
µSPEED-PRT |
In some applications there is a need to provide the product measured in length directly with a label which contains the essential measurement data. This is done by the printer μSPEED-PRT. |  |
Optical Adjustment Monitoring |
| Optical Adjustment Aid
µSPEED-OAJ-3-N |
μSPEED-OAJ-3-N allows a fast and safe adjustment of μSPEED systems without the aid of meter sticks, spirit level or protractor. The adjustment aid OAJ3 is, among other things, for portable measurement applications, for measurements on rotating cylinders or in tight spaces and in applications with constantly varying material spacing. |
|
Protection Casing |
| Casing for air cooling
µSPEED-HSEe |
The casing μSPEED-HSEe made of stainless steel is used to protect the sensor head from contamination and from unsuitable ambient temperatures. The HSEe must be supplied with suitable purging air. |
|
| Casing for air cooling and water cooling
µSPEED-HSEw |
The casing μSPEED-HSEw is used to protect the sensor head from contamination and from unsuitable ambient temperatures. The HSEw must be supplied with suitable purging air. It is designed for higher ambient temperatures due to the additional connection for water cooling. The HSEw contains two heat exchanger plates. |
|
| Heat Exchanger Plates
µSPEED-HE |
Heat exchanger plates with 2 cooling water flange connections can be mounted on one or both sides of the sensor head. The water-rinsed heat exchanger plates allow the use of the sensor in a warm measuring environment. |
|
| Quick Cange Protective Glass
µSPEED-QCW |
The μSPEED-QCW Quick Change Protective Glass is designed for use in harsh environments with heavily polluted ambient air. The QCW allows the replacement of the protective glass in seconds and allows the actual cleaning of the glass can be operated detached from the sensor. |
|
Sensor Mounting Plate |
| Mounting Plate with Swivel/Slot Hole Element
µSPEED-MP |
μSPEED-MP is set up via rotary element, which allows an angular adjustment of the sensor in the material movement direction by +/- 80 °. Slotted holes on the rotary element allow a distance adjustment of the sensor head. |
|
Height Adjustment Unit |
| Adjustment unit for precise distance adjustment of the sensor head
µSPEED-HA |
The height adjustment unit allows the sensor adjustment to be carried out with the diameter and thickness variations of the material being measured at the correct measurement distance. |
 |
Cable Guidance with Stand |
| Cable Guidance and Sensor Tripod with Laser Protection Casing
µSPEED-CGS |
The cable guidance with tripod for the μSPEED sensor (μSPEED-CGS) always ensures the correct distance between the cable and the sensor as well as the correct routing of the cables. When the laser protection casing is opened, the laser switches off automatically. |  |
Laser Protection Equipment |
| Laser Protection Tube
µSPEED-TUBE |
The sensor head TUBE for the μSPEED sensor reduces the risk of direct exposure of the laser beam. The TUBE can be combined with the laser shutter LSH. |
|
| Laser Shutter
µSPEED-LSH |
The laser shutter μSPEED-LSH is used for the mechanical blocking of the laser beam. The shutter is manually activated by means of a sliding mechanism and is mounted on the front of the μSPEED system with four screws. |
|
| Optics
µSPEED-AO |
The angle optics AO is used when the existing mounting space is very limited. The 90° angle optics makes it possible to manage with minimal space. |
|
| Laser Protection and Safety Monitoring
µSPEED-LSSC |
The laser protection safety monitoring links various monitoring sensors to avoid any danger from the μSPEED laser. Laser class 1 may be achieved in conjunction with other protective measures. |  |
Principio de medición para contadores de longitud con tecnología de sensores láser sin contacto y certificado de unidad según la MID 2014/32/UE
Se genera un patrón de rayas en el medio a medir con la ayuda de dos rayos láser. Al mover la superficie del material medido, se modula la intensidad de la luz retrodispersada en el detector. La frecuencia de la modulación del brillo es directamente proporcional a la velocidad del medio y a la frecuencia Doppler. La luz dispersa es convertida en una señal eléctrica por un fotodetector y alimentada a un procesador a través de un convertidor analógico/digital. El procesador determina la velocidad actual y la longitud de la ruta de la señal digitalizada. No es necesario utilizar marcas o escalas en el objeto a medir.
Videos regarding MID 2014/32/EU Calibratable Length Measurement Systems tactile / non-contact
| Product Video – µSPEED
Laser Encoder Length Measurement Systems and Speed Measurement Systems Product Ranges and Application Overview |
 |
| Length Measurement in Textile Production – µSPEED
Laser-Encoder Length Measurement Systems and Speed Measurement Systems Measurement at the output of production with portable μSPEED system |
 |
| Wire Length Measurement – µSPEED
Laser Encoder Length Measurement Systems and Speed Measurement Systems Length measurement in bare-wire production with μSPEED laser system |
 |
| Steel Rope Length Measurement System – µSPEED
Laser Encoder Length Measurement Systems and Speed Measurement Systems Testing the measurement accuracy of a system counter for ropes with portable μSPEED laser sensor |
 |
| Textile Fabric Inspection Length Measurement – µSPEED
Laser Encoder Length Measurement Systems and Speed Measurement Systems Length measurement machine for textiles is calibrated without contact with μSPEED |
 |
| Nonwoven Fabric Length Measurement – µSPEED
Laser Encoder Length Measurement Systems and Speed Measurement Systems Length measurement in nonwoven fabric production plant without contact with μSPEED laser doppler system |
 |
Downloads regarding MID 2014/32/EU Calibratable Length Measurement Systems tactile/non-contact
|
|
|
|
|
 |

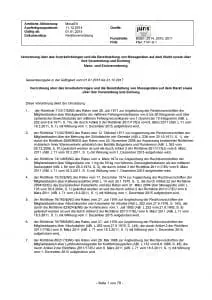

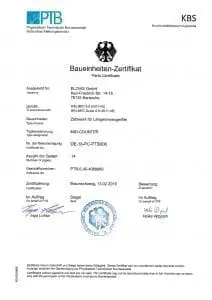

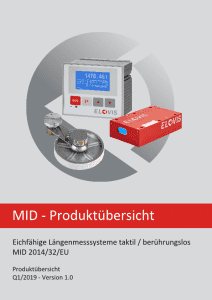

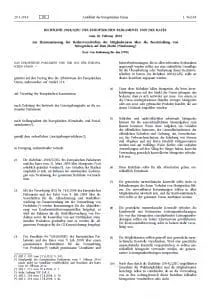

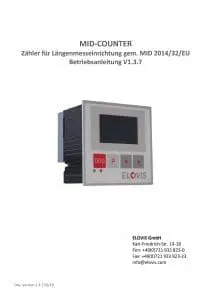

| MID – Product Overview | MID – Manual | MID – Part Certificate | MID – National Measurement Instruments Directive | MID – European Measurement Instruments Directive 2014/32/EU |
